UNDERGROUND DUCTBANK

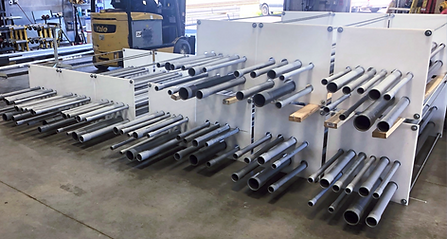

Preassembled Underground Duct Bank Systems



UNDERGROUND HORIZONTAL DUCT BANK PRODUCT FEATURES



​Duct bank can be custom UL approved materials of your choice. Duct bank allows for a self-supporting assembly, and custom spacing and conduit size to specifications. Duct bank is delivered to your jobsite pre-assembled and ready for installation reducing overall schedule and time onsite. 

​

• Durable cradling allows for jobsite conditions

• Standard configurations are spaced to accommodate medium voltage heat calculations

• Ganged 10′ and 20′ sections provide expedited installation

• NEMA TC-2

• CSA C22.2 No. 211.2

• Sunlight Resistant



UNDERSTANDING PREASSEMBLED DUCTBANK SYSTEMS



Duct bank systems typically consist of PVC conduits installed underground for the purpose of protecting electrical and/or communications cabling. They shield wires from the weather as well as potential damage caused by tree roots or burrowing animals. These conduits also serve an important purpose in keeping cables and wiring consolidated in a neat and orderly pathway, rather than having them haphazardly running through the ground.



Compared to traditional duct bank systems, DuFab Manufacturing’s preassembled options offer workers a streamlined approach to installation. These duct bank systems are delivered to the jobsite ready to be installed, with customized spacing and sizing handled during the fabrication process. Standard duct bank systems are fabricated and cut to size on the jobsite, which can lead to complications and delays in the event of mismeasurement or a lack of needed materials. However, DuFab provides systems made from UL-approved materials directly to the site, ready to be installed. Our underground duct bank systems are available in 10-foot and 20-foot ganged sections, made from NEMA TC-2 and CSA C22.2 No. 211.2-compliant materials. Our offerings can save crews a significant amount of time and labor, helping commercial and industrial projects stay on schedule and eliminate risk.



IMPROVING SAFETY AND ENVIRONMENTAL IMPACT



In addition to expediting the installation of underground utilities, our underground duct bank systems also help contribute to a safer and more sustainable worksite. Because they can be installed much faster than traditional systems, they mean workers spend less time in potentially hazardous zones. The fact that they are fabricated in a controlled environment also means there is less potential for wasted materials.



DRIVING PROJECT SUCCESS



With DuFab’s prefabricated, easy-to-install underground electrical duct bank solutions, contractors have an efficient, scalable and compliant answer for utility infrastructure builds across multiple sectors. Our systems make the jobsite safer and more efficient, leading to stronger overall results. If you’re interested in learning more about our modular products and how they can deliver significant improvements for your next project, reach out to us today to talk about your requirements.



CONTACT DUFAB TODAY!



Contact us to see how we can reduce your schedule, mitigate your risks and provide you with superior products.
